Introduction
Most commercial refrigeration systems use electric heaters, hot gas, or water sprays to strip frost from evaporator coils. Natural defrosting — also called off-cycle or air defrost — skips all of that. The condensing unit shuts off, fans circulate room air across the coil, and frost melts using only ambient heat.
This article is written for refrigeration technicians, commercial kitchen managers, and facility operators who need a clear operational picture of the method. You'll learn how the process works, where it performs reliably, and where it breaks down.
Whether you're troubleshooting a walk-in cooler or specifying equipment for a new facility, knowing where natural defrost stops being viable prevents expensive system failures down the line.
TL;DR
- Natural defrost cycles the condensing unit off and relies on ambient air to melt frost without any external heat source
- Most cost-effective and mechanically simple defrost method, though only reliable above 28°F
- Control options include manual switch, suction pressure, or time clock, and each comes with trade-offs
- Excessive off-cycle time in cold climates and high humidity both drive incomplete defrosts
- CNSRV's DC:02 defroster applies the same passive-thaw logic to commercial kitchens, cutting thaw time in half with 98% less water
What Is Natural Defrosting in Commercial Refrigeration?
Natural defrosting is the process where the condensing unit switches off and frost melts through heat absorbed from surrounding air. The evaporator coil warms passively — no heaters, no refrigerant reversal, no water spray — until ice melts and drains away.
ASHRAE recognizes four other common defrost methods, each of which adds external heat energy:
- Electric defrost uses resistance heaters mounted on the coil
- Hot gas defrost reverses refrigerant flow, sending warm discharge gas through the coil
- Water defrost sprays liquid directly onto the coil surface
- Secondary fluid defrost circulates heated glycol or brine
Natural defrost adds none of that — no external energy input, no added operating cost.

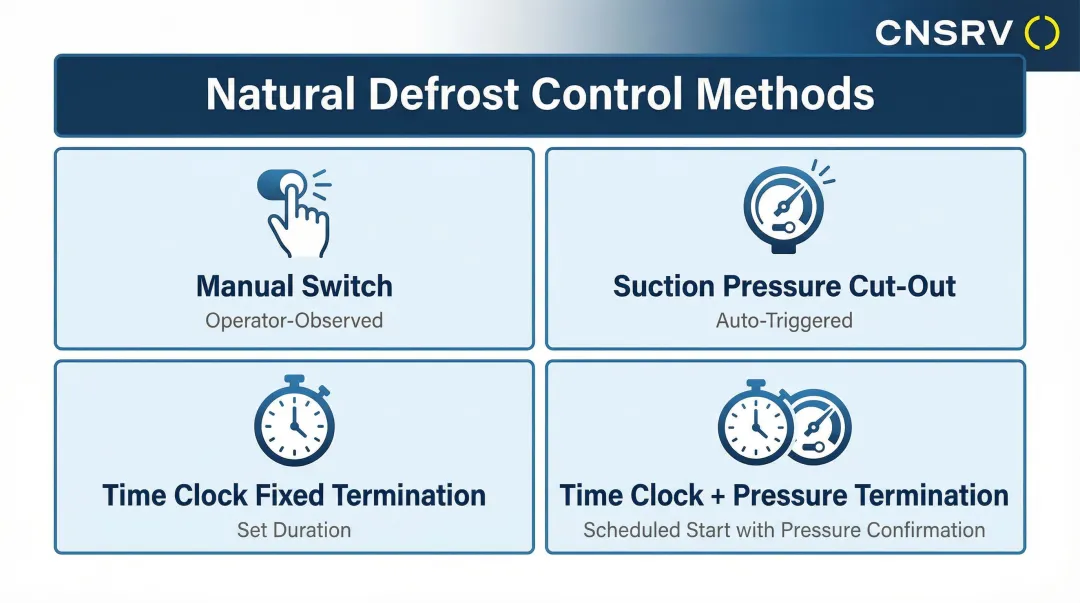

Control variants govern when the process starts and stops:
- Manual switching: the operator observes frost buildup and opens the compressor circuit
- Suction pressure cut-out: low pressure triggers the off-cycle automatically
- Time clock with fixed termination: a pre-programmed off-cycle runs for a set duration
- Time clock with pressure termination: scheduled start, but the compressor restarts only when suction pressure rises to a threshold confirming the coil has warmed
All four variants manage timing differently, but the underlying mechanism stays the same: the refrigeration system simply pauses and lets ambient heat do the work.
Why Natural Defrosting Is Used in Commercial Refrigeration
Frost accumulation on evaporator coils acts as an insulator, reducing heat transfer efficiency and restricting airflow. A fully iced coil can effectively halt system performance. According to U.S. Department of Energy research, efficiency degradation due to frost growth and the energy required for defrosting can account for 15-25% of a commercial refrigerator's annual electric energy consumption.
Cost and Mechanical Simplicity
Natural defrost requires no defrost heaters, no additional refrigerant piping, and no high-voltage controls. This makes it the default choice for smaller units, older systems, or facilities looking to minimize installation complexity. In systems using electric defrost, the heaters themselves can consume 10% to 30% of total display case energy, with an average of approximately 20%.
Where Natural Defrost Is Adopted
Natural defrost is regularly used in:
- Vegetable and dairy display cases operating in the 36°F–42°F range
- Medium-temperature walk-in coolers for meat and produce storage
- Deli and beverage merchandisers where evaporator temperatures stay above freezing
- Buffet and prep tables where ambient air carries sufficient heat
ASHRAE classifies natural defrost as an accepted method for appropriate temperature ranges under commercial refrigeration design practice. Natural defrost doesn't require special equipment certifications.
What Goes Wrong Without Defrost
Without any defrost cycle, systems experience:
- Reduced evaporator efficiency from ice insulation
- Increased compressor run time and energy consumption
- Higher product temperatures as airflow is blocked
- Eventual system failure from sustained frost buildup
This is part of why electric defrost carries its own efficiency penalty. ASHRAE notes that up to 80% of the heat generated by electric defrost heaters transfers into the refrigerated enclosure rather than melting ice. The refrigeration system must then remove that added heat load during pull-down (the re-cooling phase after defrost), compounding overall energy use.
How Natural Defrosting Works
Natural defrosting — also called off-cycle defrosting — works by pausing the refrigeration cycle and allowing ambient heat to raise the evaporator coil temperature above 32°F. Frost melts into water that drains away from the coil, and the system resumes normal operation once the surface is clear. For commercial kitchens, understanding each phase of this process is the difference between efficient frost management and recurring ice buildup problems.
Inputs that govern the process:
- Volume of frost on the coil
- Ambient air temperature around the evaporator
- Fin spacing and coil surface area
- Whether evaporator fans continue running during the off-cycle (forced-air units defrost faster than gravity airflow units)
These inputs shape every decision across the three steps below — from how defrost gets triggered to when the compressor safely restarts.
Step 1: Initiating Defrost
Two main triggers start the defrost cycle:
Manual switch-off: The operator observes frost buildup and opens the compressor circuit. This method relies on staff awareness and is prone to inconsistency.
Time clock initiation: Pre-programmed off-cycle at set intervals. This is more common in commercial settings because it removes dependency on staff observation and creates a predictable maintenance rhythm. Industry benchmarks suggest 3 to 4 defrost cycles per day (every 6 to 8 hours) for display cases, and 1 to 2 cycles per day for walk-in coolers.
Step 2: The Melt Phase

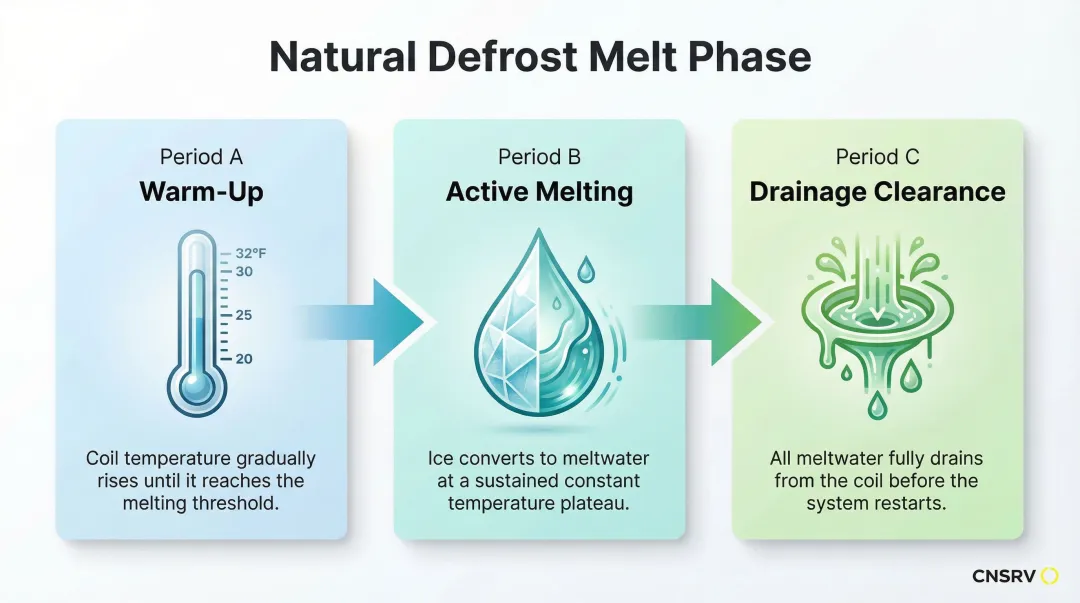

During the off period, the evaporator coil gradually warms as heat flows from surrounding air into the frost. Technical literature identifies three distinct periods:
- Period A (Warm-up): Coil metal rises to 32°F
- Period B (Active melting): Ice transitions to water at constant temperature
- Period C (Drainage clearance): Coil temperature exceeds 32°F long enough for meltwater to fully drain before refrigeration restarts
Skipping period C is a common operational error. If the compressor restarts before drainage completes, meltwater refreezes on the coil, creating a seed for rapid frost growth in the next cycle.
Step 3: Terminating Defrost and Resuming Operation
Two termination methods control when the compressor restarts:
Time-based termination: Fixed off-period regardless of frost load. Simple and predictable, but may terminate too early in high-frost conditions or waste time in low-frost conditions.
Suction pressure-based termination: Compressor restarts only when pressure rises to a pre-set threshold, indicating the coil has warmed sufficiently. For modern R-134a systems, manufacturer manuals cite a termination temperature around 47°F. A time clock can be wired to set the off-period duration — commonly 45–90 minutes for forced-air evaporators, up to 3 hours for gravity airflow units — while suction pressure monitoring confirms the coil has actually warmed before restart.
This method guarantees a complete defrost regardless of frost volume. The one caveat: if ambient conditions at the condensing unit run unusually cold, pressure may never reach the cut-in point, causing an uncontrolled extended off-cycle.
Key Factors That Affect Natural Defrost Performance
Temperature Range of the Refrigerated Space
Natural defrost is mechanically limited to medium-temperature applications — refrigerators operating above 28°F. Below this threshold, ambient air does not carry enough heat energy to melt frost within a reasonable off-cycle window. Low-temperature freezers (below 0°F to –10°F) require electric or hot gas defrost instead.
Ambient Conditions at the Condensing Unit Location
In cold climates or where condensing units are installed outdoors, ambient temperatures at the condensing unit can fall below the evaporator's own suction pressure set point. This causes refrigerant to migrate to the cold condenser, and suction pressure to remain below the cut-in point — an installation risk that's easy to overlook. The compressor stays off for extended, uncontrolled periods, allowing product temperatures to rise to unsafe levels.
Mitigation strategies include:
- Head pressure control valves to maintain discharge pressure
- Thermostatic control using fixture temperature rather than suction pressure
- Heated receivers to maintain liquid pressure in cold ambients
Coil Fin Spacing and Airflow Design

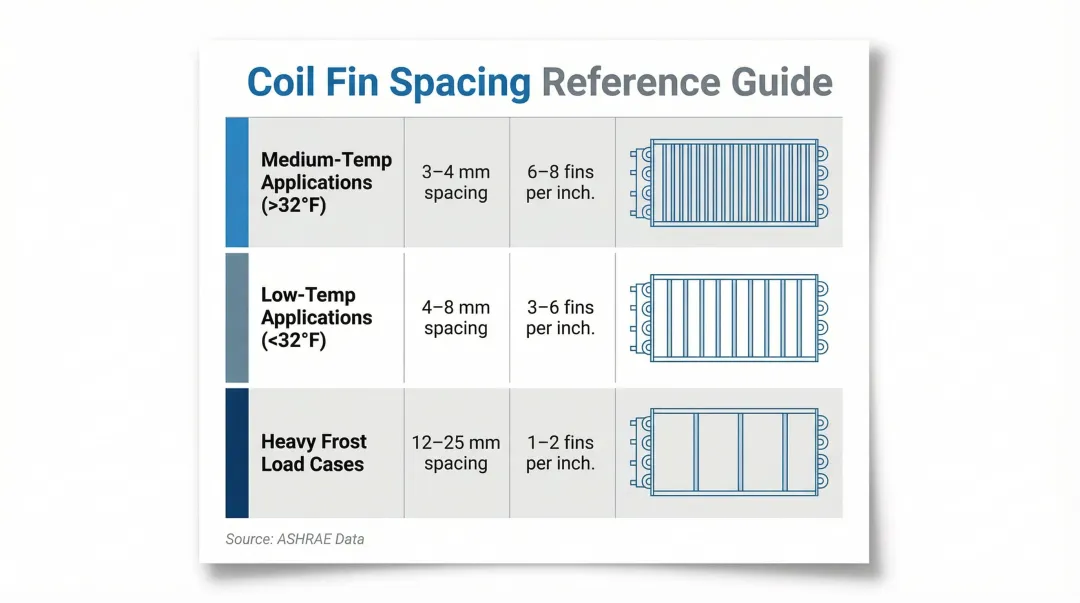

Refrigeration coils use wider fin spacing than HVAC coils specifically because wider spacing slows frost bridging between fins. ASHRAE data shows:
- Medium-temp applications (>32°F): 3-4 mm spacing (6-8 fins per inch)
- Low-temp applications (<32°F): 4-8 mm spacing (3-6 fins per inch)
- Heavy frost load cases: 12-25 mm spacing (1-2 fins per inch)
Gravity airflow coils take significantly longer to defrost than forced-air units because they rely entirely on convective heat transfer without fan assistance.
Frost Accumulation Rate Relative to Defrost Frequency
The number and duration of defrost cycles must be calibrated to the actual frost load, which varies by:
- Humidity infiltration
- Door opening frequency
- Product type and load-in temperature
If defrost cycles are too infrequent or too short, residual ice accumulates cycle over cycle until airflow is blocked entirely.
Each of these factors interacts with the others. A coil well-matched to its frost load can still underperform if ambient conditions shift or defrost timing isn't adjusted seasonally.
Common Issues, Misconceptions, and When to Avoid Natural Defrost
The "Maintenance-Free" Misconception
The most common misconception is that natural defrost is "maintenance-free" because there are no heaters to fail. In practice, it still requires correctly set control parameters, functioning drainage systems, and periodic inspection. An improperly set time clock or a blocked drain pan will allow frost to accumulate beyond what ambient air can clear in a standard off-cycle.
Over-Application in Low-Temperature Environments
Teams often over-apply natural defrost by default in low-temperature freezer cases for ice cream or frozen food (below 0°F to –10°F fixture temperatures). These applications require evaporator temperatures far below 32°F, meaning natural defrost cycles would need to run for many hours to fully clear frost. That creates unacceptable product temperature risk. Electric or hot gas defrost is required in these environments.
Confusing Duration with Completeness
A long off-cycle does not guarantee a complete defrost. If the coil temperature never fully rises above 32°F across all sections, residual ice accumulates cycle over cycle until airflow is blocked entirely. This is especially common when ambient temperatures around the evaporator are low.
When to Avoid Natural Defrost
Avoid natural defrost in:
- High frost-load environments — meat display cases collecting 3–5 lbs of frost per day vs. frozen food cases at 1–2 lbs
- Operations where refrigeration downtime must be minimized — hospitals, laboratories, critical food storage
- Installations where suction lines run through cold trenches or conduit that prevent pressure from rising to the cut-in point
- Any application below 28°F — physics simply doesn't allow ambient air to carry enough heat
The Food Thawing Parallel
The natural vs. active defrost trade-off isn't unique to refrigeration equipment. It shows up in commercial kitchen food thawing too. Leaving frozen product to thaw naturally in a refrigerator overnight is safe but creates operational bottlenecks. Restaurants and catering operations face the same problem: passive defrost is too slow for operational demand.
CNSRV's DC:02 defrosting system gives commercial kitchens a health code-compliant, NSF-listed alternative that uses 98% less water than running faucet methods and defrosts in half the time. The system circulates water at approximately 130 gallons per minute (10–30× faster than typical commercial faucets) while maintaining FDA-required water velocity and agitation in a closed-loop system.
For operations where time matters, active systems solve the same problem that makes natural defrost impractical in low-temperature refrigeration.
Frequently Asked Questions
Frequently Asked Questions
What two things will initiate defrost?
Defrost is typically initiated by a time clock (scheduled at set intervals) or a suction pressure control (which triggers when pressure drops to a threshold indicating frost buildup). Manual initiation is also possible but less common in modern commercial settings.
What two things are performed by the evaporator?
The evaporator both absorbs heat from the refrigerated space (providing the cooling effect) and removes moisture from the air as that moisture condenses and freezes on the coil surface. That second function — frost accumulation on the coil — is exactly why defrost cycles exist.
What is the difference between natural defrost and electric defrost?
Natural defrost uses only ambient air heat during a compressor-off period and adds no external energy, while electric defrost uses resistive heating elements to actively melt frost. Electric defrost is faster and suitable for low-temperature applications, but adds to energy costs and requires additional components.
What temperature range is natural defrosting effective for?
Natural defrost is generally limited to medium-temperature refrigeration applications where fixture temperatures are above 28°F, because ambient air must carry sufficient heat to melt frost within a practical off-cycle window. Below this range, the process becomes too slow and risks unsafe product temperatures.
How long does a natural defrost cycle typically take?
Forced-air evaporators typically require 45–90 minutes per defrost cycle, while gravity airflow systems may need 3 hours or more. Actual duration depends on frost volume, ambient temperature, and whether fans continue running during the off period.
What are the signs that a commercial refrigeration system needs defrosting?
Main indicators include visible ice or frost buildup on the evaporator coils, reduced airflow from the unit, higher-than-normal refrigerated space temperatures despite the compressor running, and increased energy consumption.
