Introduction
Automatic defrost systems appear in nearly all modern refrigeration—from home refrigerators to large cold storage facilities. Most household and commercial appliances use this technology across residential, commercial, and industrial settings.
The global Automatic Defrost Controller Market reached $0.45 billion in 2024 and is projected to hit $1.12 billion by 2034.
Despite widespread adoption, few users understand how frost prevention actually works. This knowledge gap creates problems:
- Confusion when selecting equipment
- Difficulty diagnosing issues
- Misunderstanding energy efficiency claims
Understanding these systems matters because defrost heaters account for 10-30% of a unit's total energy consumption.
This guide breaks down the working principles, component roles, and operational stages of automatic defrost systems in practical terms.
TLDR
- Prevents frost buildup by periodically heating evaporator coils to melt accumulated ice
- Runs automatically without user intervention through timer-controlled heating cycles
- Eliminates manual defrosting while keeping temperatures stable
- Found in frost-free refrigerators, freezers, and commercial cold storage
- Consumes 10-30% of unit energy but prevents greater efficiency losses from ice accumulation
What Is an Automatic Defrost System?
An automatic defrost system is a refrigeration technology that uses timed heating cycles to remove frost from evaporator coils without manual intervention.
Industry standards define it as a system where the defrost cycle automatically starts and stops, with normal refrigeration resuming on its own and defrost water disposed of without user action.
Why It Exists

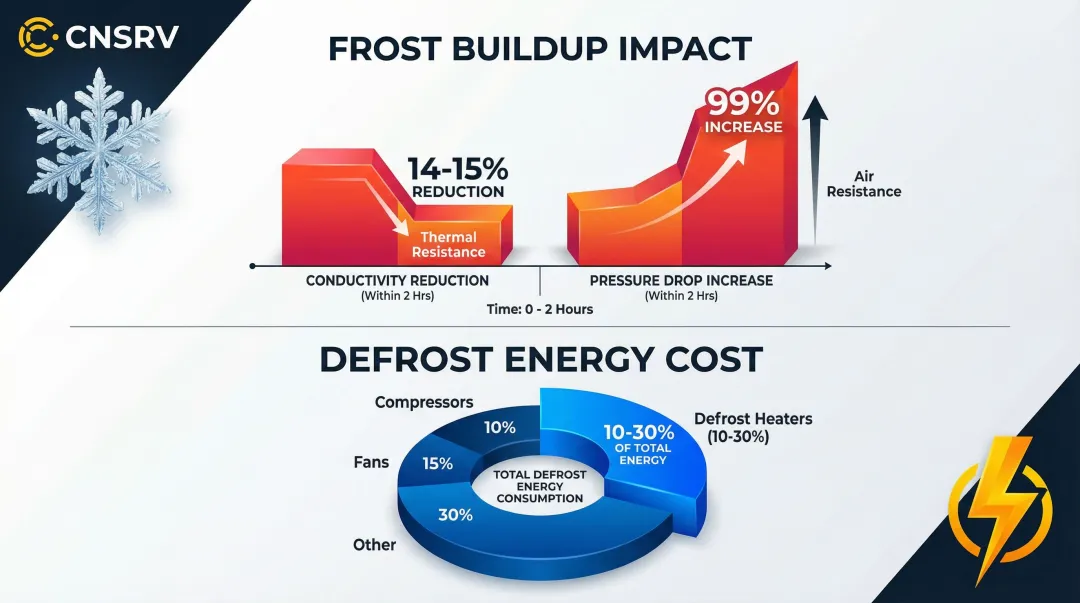

Frost accumulation on evaporator coils creates severe operational problems:
- Heat transfer degradation: Total conductivity decreases by 14-15% within just two hours of operation
- Airflow restriction: Air-side pressure drop increases by 84-99% as frost blocks coil passages
- Energy penalty: The compressor works harder to maintain temperatures, significantly increasing consumption
Automatic defrost solves these issues by periodically removing frost before it becomes problematic, maintaining consistent cooling efficiency without requiring users to manually empty units, power down equipment, and wait for frost to melt.
Common Misconceptions
Automatic defrost is sometimes confused with similar-sounding technologies that work differently:
- Manual defrost: Requires user intervention to initiate, terminate, and dispose of water
- Cycle defrost: Only defrosts the fresh food section, not the freezer
- Semi-automatic defrost: May be manually initiated but automatically terminated

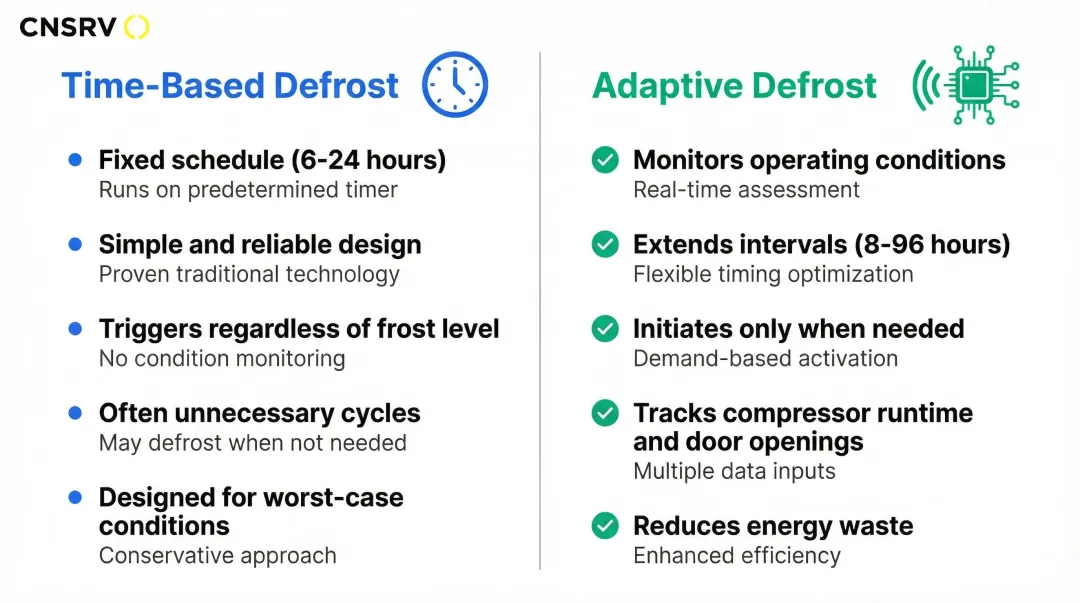

Types of Automatic Defrost
Time-Based Defrost Systems:These activate on fixed schedules (every 6-24 hours) regardless of actual frost accumulation. Simple and reliable, they often trigger unnecessary cycles set for "worst-case" conditions, wasting energy.
Adaptive Defrost Systems:These monitor operating conditions—compressor runtime, door openings, temperature differentials—to initiate defrost only when needed. Adaptive systems can extend intervals from 8 hours up to 96 hours of compressor runtime, significantly reducing energy waste while maintaining the same core defrosting process.
Automatic defrost remains widely used in commercial and residential refrigeration because it balances maintenance-free operation with energy efficiency and consistent temperature control.

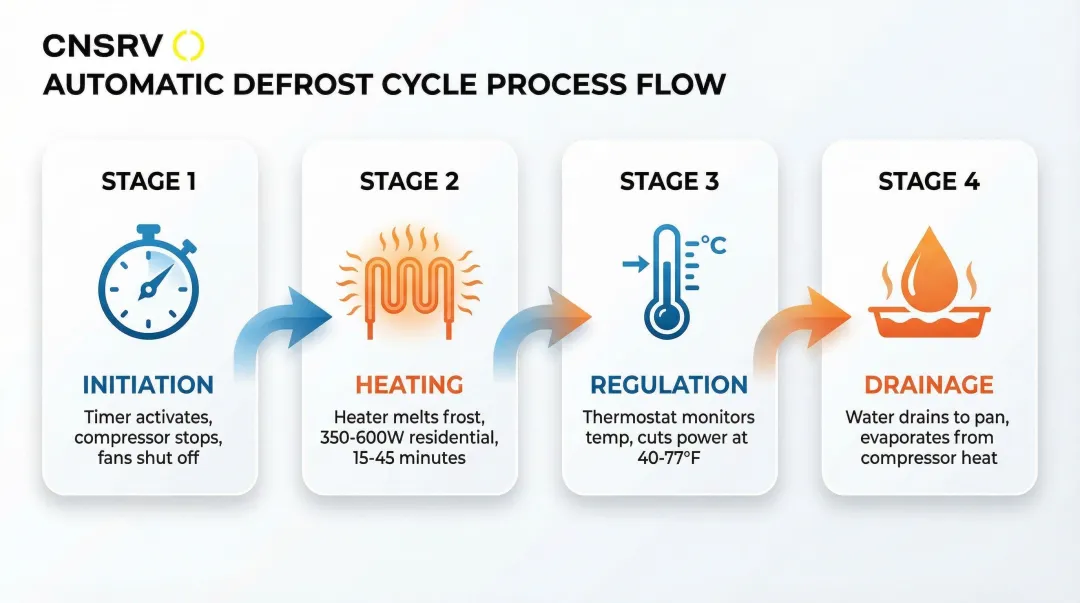

How Does an Automatic Defrost System Work?
Automatic defrost operates through a precise four-stage sequence—initiation, heating, temperature regulation, and water drainage—each controlled by specific components to prevent frost while maintaining food safety temperatures.
Initiation: The Defrost Timer Activates
The process begins when a defrost timer (electromechanical or electronic) triggers after a set interval. Commercial units often default to cycles every 6 hours, while residential adaptive systems may wait 8-96 hours of compressor runtime depending on usage patterns.
When the timer activates defrost mode, it immediately:
- Stops the compressor to halt cooling
- Shuts off circulation fans to prevent warm air from reaching food compartments
- Starts the heating element
Users may notice the refrigerator becomes silent (no compressor hum or fan noise) for 15-45 minutes during this phase.
Core Operation: Heating Element Melts Frost
Once the timer signals completion, the defrost heater activates. Positioned near or below the evaporator coils, this heating element generates heat that melts frost and ice accumulation.
Heater specifications vary by application:
- Residential units: 350-600 watts (e.g., 470W for standard 25 cu ft models)
- Commercial units: 500-3600 watts depending on size and configuration
As the heating element warms up, frost melts from the coils and water droplets form. This process is inherently inefficient—only 15-30% of the heater's energy actually melts frost, while the remaining energy heats surrounding components.
Heater power rating and positioning directly affect defrost efficiency. Undersized heaters may not fully melt frost, while oversized heaters waste energy and risk warming food compartments beyond safe temperatures.
Regulation: Defrost Thermostat Prevents Overheating
A defrost thermostat (or defrost limiter) monitors evaporator temperature and automatically shuts off the heating element when temperature rises above a preset threshold:
- Refrigerators: Typically terminate at 40-44°F (4.4-6.6°C)
- Freezers: Higher thresholds, typically 45-77°F (7.2-25°C) depending on sensor location
- Example specification: Whirlpool thermostats open above 42°F ± 5° and reset below 12°F ± 7°
This safety control is critical—without temperature regulation, the heating element could continue warming the compartment, potentially bringing food to unsafe temperatures or damaging components. The thermostat works independently of the timer; even if the timer hasn't completed its cycle, the thermostat will cut power once safe temperatures are reached.
Output: Water Drainage and System Reset
Melted frost water drains through a duct or trough at the back or bottom of the unit into a drain pan, where it evaporates naturally from residual compressor heat.
Drainage system requirements include:
- Drain lines pitched steeply (minimum 1/4 inch drop per foot)
- A trap to prevent warm air migration
- Heated and insulated drain lines and pans in freezing environments
Once defrosting completes and the timer resets, the compressor and fans restart, quickly returning the unit to normal operating temperatures. Proper drainage prevents water accumulation and ice dams that could block future defrost cycles.
Common drainage failures include:
- Blocked drains leading to water pooling inside the unit
- Ice buildup from inadequate drain heating
- "Steaming" where excessive defrost duration causes condensate to refreeze on fan components
Why Automatic Defrost Systems Matter
⚠️ CRITICAL CONTENT MISMATCH DETECTED: This section discusses refrigeration/freezer automatic defrost systems (preventing frost buildup on evaporator coils), but CNSRV manufactures FOOD defrosting equipment (thawing frozen food products). These are completely different product categories.
RECOMMENDATION: This entire blog topic appears out-of-scope for CNSRV. The company should either:
- Redirect this content to discuss food defrosting methods (running water vs. CNSRV system)
- Discontinue this blog topic entirely
If proceeding with revision despite mismatch, formatted corrections below:
The choice between automatic and manual defrost involves critical trade-offs affecting operations, energy consumption, and temperature stability.
Operational Efficiency Impact
Automatic defrost maintains consistent cooling performance by preventing frost buildup that acts as insulation.
Studies indicate frost accumulation reduces total conductivity by 14-15% and increases air-side pressure drop by up to 99% within just two hours. This dramatically reduces cooling efficiency and forces compressors to work harder.
The defrost process itself carries an energy penalty, though. In commercial refrigerated display cases, electric defrost heaters account for 10-30% of total electrical energy consumption. This represents a significant operational cost that must be balanced against the efficiency losses from allowing frost to accumulate.
Maintenance and Labor Savings
Automatic defrost eliminates manual defrosting procedures that require substantial labor and downtime:
- Emptying units and relocating contents
- Turning off equipment for extended periods
- Manually removing ice accumulation
- Cleaning and sanitizing interior surfaces
- Waiting for units to return to operating temperature
These labor savings add up quickly, eliminating hours of staff time per week and preventing operational disruptions that affect food service delivery.
Food Safety and Quality Implications
Automatic defrost maintains more stable temperatures compared to manual defrost cycles where units must be powered down for extended periods. This consistency helps:
- Prevent freezer burn caused by frost exposure on food products
- Maintain compliance with food safety temperature requirements
- Reduce temperature fluctuations that can compromise product quality
Important caveat: Electric defrost methods can cause temperature spikes within the interior. As a result, refrigerators or freezers with electric defrost are generally not recommended for storing highly temperature-sensitive samples like certain vaccines or enzymes, where manual defrost units provide superior temperature stability.
Where Automatic Defrost Systems Are Used
Residential Applications
Frost-free refrigerators and upright freezers dominate home use where convenience and minimal maintenance are priorities. Most modern full-size refrigerators manufactured today include automatic defrost as standard.
Exception: Chest freezers often still use manual defrost due to their top-opening design, which minimizes cold air loss and reduces frost accumulation rates. Manual defrost chest freezers also consume approximately half the energy of automatic defrost models, making them more efficient for long-term frozen storage.
Commercial and Food Service Usage
Automatic defrost is widespread in commercial applications:
- Restaurant walk-in coolers and reach-in units
- Display freezers and merchandising cases
- Food storage units and prep area refrigeration
- Institutional kitchen equipment
These environments require consistent temperatures for food safety compliance, and the labor savings from eliminating manual defrosting justify the energy cost of automatic cycles.
Industrial and Specialized Applications
Beyond commercial kitchens, industrial facilities have specialized temperature control needs that determine whether automatic defrost is appropriate:
- Pharmaceutical storage: Purpose-built units often use advanced controls or hot-gas defrost systems to reduce temperature spikes during cycles
- Laboratory freezers: Temperature-sensitive biological samples may require manual defrost to avoid fluctuations
- Cold storage warehouses: Large-scale systems typically employ hot gas defrost rather than electric, using waste heat from compressors for greater efficiency
Emerging Applications in Commercial Food Handling
While refrigeration defrost systems prevent ice buildup on cooling coils, commercial kitchens face a separate challenge: safely thawing frozen food products for preparation.
Traditional methods involve running water over frozen items for hours, wasting significant resources. Modern solutions use controlled water circulation in closed-loop systems instead.
Benefits of advanced food defrosting technology:
- Reduces water consumption by 98% compared to running faucet methods
- Cuts defrosting time in half through controlled water agitation
- Maintains food safety standards with precise temperature regulation
- Can save commercial kitchens up to 1 million gallons of water annually
Systems like CNSRV's DC:02 address this water conservation need while meeting NSF food contact standards, representing a different application of defrosting technology in foodservice operations.
Conclusion
Automatic defrost systems use a coordinated sequence of timer activation, controlled heating, temperature regulation, and water drainage to prevent frost buildup without user intervention.
This mechanism explains why these systems have become the refrigeration standard. They eliminate labor-intensive maintenance while maintaining consistent cooling performance.
Understanding these systems helps you troubleshoot and make informed equipment decisions:
- Frost accumulating despite automatic defrost? Check the timer and heater.
- Freezer warming excessively during cycles? Inspect the thermostat.
- Evaluating new equipment? Consider the trade-offs between automatic convenience and manual defrost's superior temperature stability for specialized applications.
As energy efficiency becomes more critical, this knowledge helps you select smarter equipment. Look for refrigeration units with adaptive controls that minimize unnecessary defrost cycles, reducing both energy consumption and temperature fluctuations.
Frequently Asked Questions
How does an automatic defrost system work?
A timer activates a heating element that melts frost from evaporator coils, while a thermostat prevents overheating. The melted water drains to a pan where compressor heat evaporates it.
Is an automatic defrost system worth it?
Yes for most applications—it eliminates manual defrosting, maintains consistent temperatures, and prevents efficiency loss. Laboratory freezers may prefer manual defrost to avoid temperature fluctuations.
Which is better: automatic defrost system or frost-free?
"Frost-free" and "automatic defrost" are the same technology. Both terms describe systems that automatically prevent frost buildup, with "frost-free" being the consumer marketing term and "automatic defrost" being the technical industry description of the mechanism.
Do all refrigerators have an automatic defrost system?
Most modern full-size refrigerators have automatic defrost. Some compact models, chest freezers, and specialized units use manual defrost due to cost or temperature stability requirements.
What are the signs that an automatic defrost system is failing?
Key signs include excessive frost buildup on coils or walls, water pooling or leaking, temperature issues despite compressor running, or unusually long compressor silence periods indicating timer failure.
How much energy does the defrost cycle use?
Defrost heaters consume 350-600 watts during 15-45 minute cycles every 8-24 hours. In commercial applications, defrost accounts for 10-30% of total energy use, offset by efficiency gains from preventing frost buildup.
